Cisco Call Manager (CSV) v6. Параметры соединения и формат данных SMDR/CDR
Данные ниже соответствуют только программе Advanced PBX Data Logger и могут быть не применимы для других программных продуктов.
Cisco Unified Communications Manager
CDR Repository Manager
Within a Cisco Unified Communications Manager server or cluster, one instance of the CDR Repository
Manager runs on the CDR Repository server or node. It manages CDR files that are received from the
Cisco Unified Communications Manager nodes and periodically sends the files to the specified
customer/third-party billing servers via FTP/SFTP. Our PBX Data Logger polls the FTP server and retrives new data. You should add the "File" data source type and configure a FTP or SFTP connection with the FTP server.
When the file arrives on the CDR Repository server or node, the CDR Repository Manager detects it.
The system archives the file in a directory that is dedicated to the date that is indicated by the UTC
timestamp that was placed in the file name when the file was created.
If any external billing server is specified in the CDRM configuration, the system creates an empty file
in each of the corresponding folders for CAR and the billing servers, if CAR or the corresponding billing
server is activated. The CDR Agent monitors new CDR/CMR files that are generated on CallManager
servers or nodes by the call processing component. It sends the files to the CDR Repository node and
then deletes the local copy after the file is pushed out. The file sender component of the CDR Repository
Manager detects these empty files and sends the file to the destination with the specified method. If the
delivery is successful, the system removes the empty file in the destination directory.
Every Cisco Unified Communications Manager can generate one CDR file and one CMR file every
minute for up to 1 hour. You can configure the maximum disk space that is used for storage of CDR files
in the CDR Repository through provisioning.
The File Manager component of the CDR Repository Manager runs hourly. When the File Manager
runs, it deletes files with dates outside the configured preservation duration. It also checks whether disk
usage has exceeded the high water mark. If so, the system deletes the processed CDR files until the low
water mark is reached, starting with the oldest files. However, if any CDR file to be deleted was not
successfully sent to the specified billing server, the system leaves it in the CDR Repository and raises a
notification or alarm. The system creates a flag file during the configured maintenance window, which
denies access to the CDR files for the CDR onDemand Service. The system removes the flag file after
the maintenance window expires.
For detailed procedures on configuring the CDR Repository Manager and customer billing servers, see "Cisco Unified Communications Manager Call Detail Records Administration Guide"

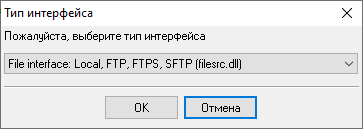

1. Создайте новый источник данных типа "File".

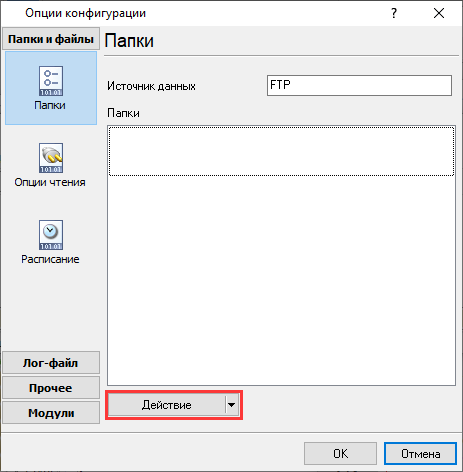

2. Кликните по кнопке "Действие → Добавить...".

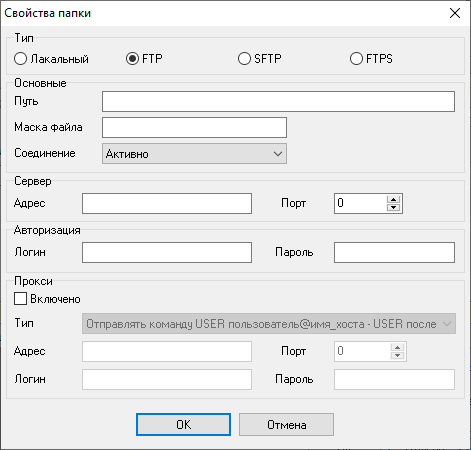

3. Выберите тип соединения "FTP" и настройте параметры подключения к FTP серверу на вашей АТС.

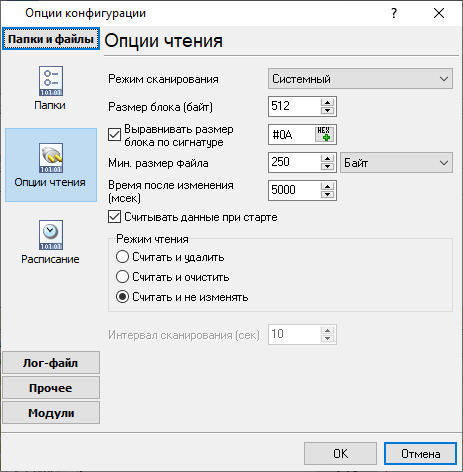

4. Подкорректируйте настройки чтения данных.
192.168.0.1
21
/path/to/files/
*.*
admin

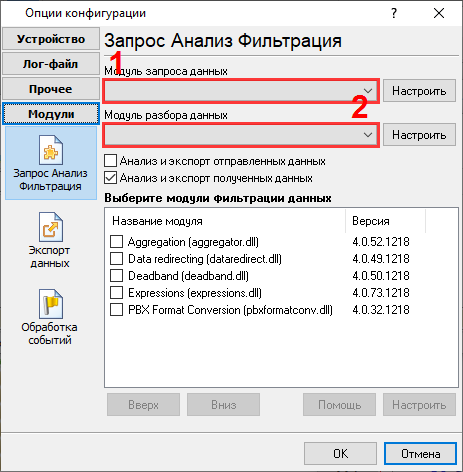

Выбор правильного модуля-парсера для Cisco Call Manager (CSV) v6
Cisco Call Manager (CSV) v6
Cisco Call Manager (CSV) v6
Данные, извлекаемые PBX Data Logger
Описание
Тип данных
Имя колонки
Cdr Тип записи
integer
CDRRECORDTYPE
Date Time Origination
integer
CALL_TIME
Date Time Origination
integer
CALL_TIME2
Original Узел Id
integer
ORIGNODEID
Вызывающая сторона Number
string
CALLINGPARTYNUMBER
Конечный Узел Id
integer
DESTNODEID
Original Вызываемая сторона Number
string
ORIGINALCALLEDPARTYNUMBER
Pkid
string
PKID
Duration
integer
CALL_DURATION_S
Код авторизации Value
string
AUTH
Длительность звонка
datetime
CALL_DURATION
Направление
string
DIRECTION
Тип звонка
string
CALL_TYPE
Набранный номер
string
DIALED_PHONE
Вызывающий телефон
string
CALLER_PHONE
Линия
string
TRUNK
Расширение
string
EXT
Global CallID call Manager Id
integer
GLOBALCALLID_CALLMANAGERID
Global CallID Идентификатор вызова
integer
GLOBALCALLID_CALLID
Original Leg Идентификатор вызоваentifier
integer
ORIGLEGCALLIDENTIFIER
Original Span
integer
ORIGSPAN
Original Ip Addr
integer
ORIGIPADDR
Вызывающая сторона Unicode Login UserID
string
CALLINGPARTYUNICODELOGINUSERID
Original Cause location
integer
ORIGCAUSE_LOCATION
Original Cause value
integer
ORIGCAUSE_VALUE
Original Precedence Level
integer
ORIGPRECEDENCELEVEL
Original Media Transport Address IP
integer
ORIGMEDIATRANSPORTADDRESS_IP
Original Media Transport Address Port
integer
ORIGMEDIATRANSPORTADDRESS_PORT
Original Media Cap payload Capability
integer
ORIGMEDIACAP_PAYLOADCAPABILITY
Original Media Cap max Frames Per Packet
integer
ORIGMEDIACAP_MAXFRAMESPERPACKET
Original Media Cap g723 Bit Rate
integer
ORIGMEDIACAP_G723BITRATE
Original Video Cap Codec
integer
ORIGVIDEOCAP_CODEC
Original Video Cap Bandwidth
integer
ORIGVIDEOCAP_BANDWIDTH
Original Video Cap Resolution
integer
ORIGVIDEOCAP_RESOLUTION
Original Video Transport Address IP
integer
ORIGVIDEOTRANSPORTADDRESS_IP
Original Video Transport Address Port
integer
ORIGVIDEOTRANSPORTADDRESS_PORT
Original RSVP Audio Stat
string
ORIGRSVPAUDIOSTAT
Original RSVP Video Stat
string
ORIGRSVPVIDEOSTAT
Конечный Leg Identifier
integer
DESTLEGIDENTIFIER
Конечный Span
integer
DESTSPAN
Конечный Ip Addr
integer
DESTIPADDR
Final Вызываемая сторона Number
string
FINALCALLEDPARTYNUMBER
Final Вызываемая сторона Unicode Login UserID
string
FINALCALLEDPARTYUNICODELOGINUSERID
Конечный Cause location
integer
DESTCAUSE_LOCATION
Конечный Cause value
integer
DESTCAUSE_VALUE
Конечный Precedence Level
integer
DESTPRECEDENCELEVEL
Конечный Media Transport Address IP
integer
DESTMEDIATRANSPORTADDRESS_IP
Конечный Media Transport Address Port
integer
DESTMEDIATRANSPORTADDRESS_PORT
Конечный Media Cap payload Capability
integer
DESTMEDIACAP_PAYLOADCAPABILITY
Конечный Media Cap max Frames Per Packet
integer
DESTMEDIACAP_MAXFRAMESPERPACKET
Конечный Media Cap g723 Bit Rate
integer
DESTMEDIACAP_G723BITRATE
Конечный Video Cap Codec
integer
DESTVIDEOCAP_CODEC
Конечный Video Cap Bandwidth
integer
DESTVIDEOCAP_BANDWIDTH
Конечный Video Cap Resolution
integer
DESTVIDEOCAP_RESOLUTION
Конечный Video Transport Address IP
integer
DESTVIDEOTRANSPORTADDRESS_IP
Конечный Video Transport Address Port
integer
DESTVIDEOTRANSPORTADDRESS_PORT
Конечный RSVP Audio Stat
string
DESTRSVPAUDIOSTAT
Конечный RSVP Video Stat
string
DESTRSVPVIDEOSTAT
Date Time Connect
datetime
DATETIMECONNECT
Date Time Disconnect
datetime
DATETIMEDISCONNECT
Last Redirect Dn
string
LASTREDIRECTDN
Original inal Вызываемая сторона Number Partition
string
ORIGINALCALLEDPARTYNUMBERPARTITION
Вызывающая сторона Number Partition
string
CALLINGPARTYNUMBERPARTITION
Final Вызываемая сторона Number Partition
string
FINALCALLEDPARTYNUMBERPARTITION
Last Redirect Dn Partition
string
LASTREDIRECTDNPARTITION
Original Device Name
string
ORIGDEVICENAME
Конечный Device Name
string
DESTDEVICENAME
Original Call Termination On Behalf Of
integer
ORIGCALLTERMINATIONONBEHALFOF
Конечный Call Termination On Behalf Of
integer
DESTCALLTERMINATIONONBEHALFOF
Original Вызываемая сторона Redirect On Behalf Of
integer
ORIGCALLEDPARTYREDIRECTONBEHALFOF
Last Redirect Redirect On Behalf Of
integer
LASTREDIRECTREDIRECTONBEHALFOF
Original Вызываемая сторона Redirect Reason
integer
ORIGCALLEDPARTYREDIRECTREASON
Last Redirect Redirect Reason
integer
LASTREDIRECTREDIRECTREASON
Конечный Conversation Id
integer
DESTCONVERSATIONID
Global Идентификатор вызова ClusterID
string
GLOBALCALLID_CLUSTERID
Join On Behalf Of
integer
JOINONBEHALFOF
Comment
string
COMMENT
Код авторизации Description
string
AUTHCODEDESCRIPTION
Authorization Level
integer
AUTHORIZATIONLEVEL
Client Matter Code
string
CLIENTMATTERCODE
Original DTMF Method
integer
ORIGDTMFMETHOD
Конечный DTMF Method
integer
DESTDTMFMETHOD
Call Secured Status
integer
CALLSECUREDSTATUS
Original Conversation Id
integer
ORIGCONVERSATIONID
Original Media Cap Bandwidth
integer
ORIGMEDIACAP_BANDWIDTH
Конечный Media Cap Bandwidth
integer
DESTMEDIACAP_BANDWIDTH
